GOAD - Enumeration
Created by: Dcyberguy
Created time: October 31, 2025 8:31 PM
Last edited by: Dcyberguy
Last updated time: December 11, 2025 10:11 PM
Status: Done
GOAD VM Status¶
GOAD/vmware/local/10.10.10.X (280025-goad-vmware) > status
[*] CWD: /workspace/280025-goad-vmware/provider
[*] Running command : vagrant.exe status
Current machine states:
GOAD-DC01 running (vmware_desktop)
GOAD-DC02 running (vmware_desktop)
GOAD-DC03 running (vmware_desktop)
GOAD-SRV02 running (vmware_desktop)
GOAD-SRV03 running (vmware_desktop)
This environment represents multiple VMs. The VMs are all listed
above with their current state. For more information about a specific
VM, run `vagrant status NAME`.

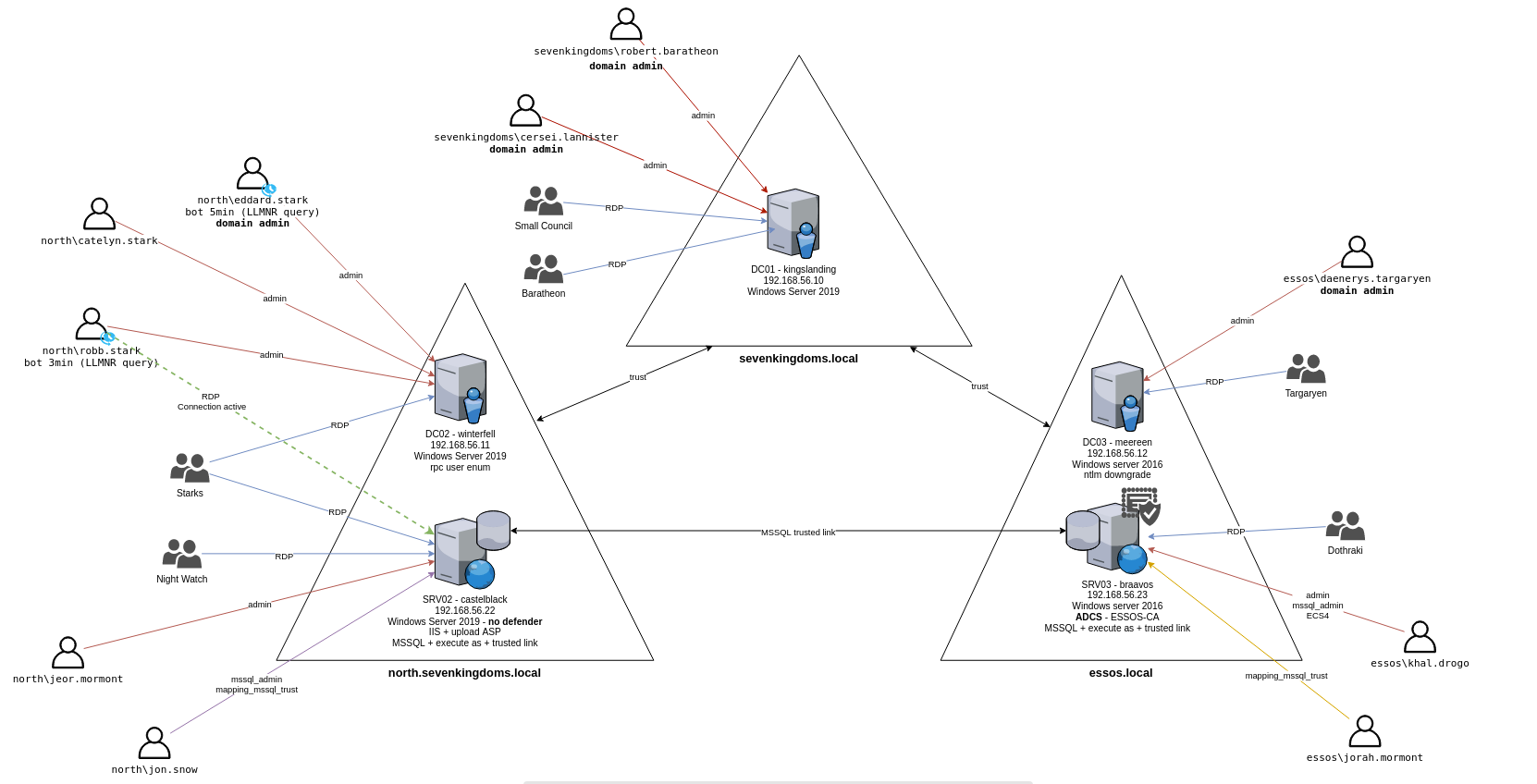

GOAD - Architecture Diagram¶
Using nxc can enumerate briefly what hosts are online, hostname and machine build
nxc smb 10.10.10.0/24 ─╯
SMB 10.10.10.12 445 MEEREEN [*] Windows 10 / Server 2016 Build 14393 x64 (name:MEEREEN) (domain:essos.local) (signing:True) (SMBv1:True)
SMB 10.10.10.10 445 KINGSLANDING [*] Windows 10 / Server 2019 Build 17763 x64 (name:KINGSLANDING) (domain:sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB 10.10.10.11 445 WINTERFELL [*] Windows 10 / Server 2019 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB 10.10.10.22 445 CASTELBLACK [*] Windows 10 / Server 2019 Build 17763 x64 (name:CASTELBLACK) (domain:north.sevenkingdoms.local) (signing:False) (SMBv1:False)
SMB 10.10.10.23 445 BRAAVOS [*] Windows 10 / Server 2016 Build 14393 x64 (name:BRAAVOS) (domain:essos.local) (signing:False) (SMBv1:True)
Running nxc against 256 targets ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00
For efficiency, add the below Hostnames and IP's to your host file @ /etc/hosts. Change the Ip Address to fit your current setup.
10.10.10.10 sevenkingdoms.local kingslanding.sevenkingdoms.local kingslanding
10.10.10.11 winterfell.north.sevenkingdoms.local north.sevenkingdoms.local winterfell
10.10.10.12 essos.local meereen.essos.local meereen
10.10.10.22 castelblack.north.sevenkingdoms.local castelblack
10.10.10.23 braavos.essos.local braavos
kingslanding.sevenkingdoms.local¶
Nmap scan report for 10.10.10.10
Host is up (0.00083s latency).
Not shown: 988 filtered tcp ports (no-response)
PORT STATE SERVICE VERSION
53/tcp open domain Simple DNS Plus
80/tcp open http Microsoft IIS httpd 10.0
|_http-title: IIS Windows Server
|_http-server-header: Microsoft-IIS/10.0
| http-methods:
|_ Potentially risky methods: TRACE
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-11-01 00:36:17Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2025-10-18T19:21:29
|_Not valid after: 2026-10-18T19:21:29
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
445/tcp open microsoft-ds?
464/tcp open kpasswd5?
593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
636/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2025-10-18T19:21:29
|_Not valid after: 2026-10-18T19:21:29
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2025-10-18T19:21:29
|_Not valid after: 2026-10-18T19:21:29
3389/tcp open ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
| Target_Name: SEVENKINGDOMS
| NetBIOS_Domain_Name: SEVENKINGDOMS
| NetBIOS_Computer_Name: KINGSLANDING
| DNS_Domain_Name: sevenkingdoms.local
| DNS_Computer_Name: kingslanding.sevenkingdoms.local
| DNS_Tree_Name: sevenkingdoms.local
| Product_Version: 10.0.17763
|_ System_Time: 2025-11-01T00:36:24+00:00
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Not valid before: 2025-10-17T18:46:35
|_Not valid after: 2026-04-18T18:46:35
Service Info: Host: KINGSLANDING; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb2-time:
| date: 2025-11-01T00:36:24
|_ start_date: N/A
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled and required
|_nbstat: NetBIOS name: KINGSLANDING, NetBIOS user: <unknown>, NetBIOS MAC: 00:0c:29:49:3d:bd (VMware)
winterfell.north.sevenkingdoms.local¶
Nmap scan report for 10.10.10.11
Host is up (0.0012s latency).
Not shown: 988 closed tcp ports (conn-refused)
PORT STATE SERVICE VERSION
53/tcp open domain Simple DNS Plus
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-11-01 01:19:44Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2025-10-18T19:53:39
|_Not valid after: 2026-10-18T19:53:39
445/tcp open microsoft-ds?
464/tcp open kpasswd5?
593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
636/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2025-10-18T19:53:39
|_Not valid after: 2026-10-18T19:53:39
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2025-10-18T19:53:39
|_Not valid after: 2026-10-18T19:53:39
3269/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2025-10-18T19:53:39
|_Not valid after: 2026-10-18T19:53:39
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
3389/tcp open ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Not valid before: 2025-10-17T19:07:41
|_Not valid after: 2026-04-18T19:07:41
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| rdp-ntlm-info:
| Target_Name: NORTH
| NetBIOS_Domain_Name: NORTH
| NetBIOS_Computer_Name: WINTERFELL
| DNS_Domain_Name: north.sevenkingdoms.local
| DNS_Computer_Name: winterfell.north.sevenkingdoms.local
| DNS_Tree_Name: sevenkingdoms.local
| Product_Version: 10.0.17763
|_ System_Time: 2025-11-01T01:20:31+00:00
Service Info: Host: WINTERFELL; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled and required
|_clock-skew: mean: -1s, deviation: 0s, median: -1s
| smb2-time:
| date: 2025-11-01T01:20:30
|_ start_date: N/A
|_nbstat: NetBIOS name: WINTERFELL, NetBIOS user: <unknown>, NetBIOS MAC: 00:0c:29:02:cb:41 (VMware)
castelblack.north.sevenkingdoms.local¶
Nmap scan report for 10.10.10.22
Host is up (0.00087s latency).
Not shown: 994 filtered tcp ports (no-response)
PORT STATE SERVICE VERSION
80/tcp open http Microsoft IIS httpd 10.0
| http-methods:
|_ Potentially risky methods: TRACE
|_http-title: Site doesn't have a title (text/html).
|_http-server-header: Microsoft-IIS/10.0
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds?
1433/tcp open ms-sql-s Microsoft SQL Server 2019 15.00.2000.00; RTM
|_ms-sql-ntlm-info: ERROR: Script execution failed (use -d to debug)
|_ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2025-11-01T00:02:43
|_Not valid after: 2055-11-01T00:02:43
3389/tcp open ms-wbt-server Microsoft Terminal Services
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| rdp-ntlm-info:
| Target_Name: NORTH
| NetBIOS_Domain_Name: NORTH
| NetBIOS_Computer_Name: CASTELBLACK
| DNS_Domain_Name: north.sevenkingdoms.local
| DNS_Computer_Name: castelblack.north.sevenkingdoms.local
| DNS_Tree_Name: sevenkingdoms.local
| Product_Version: 10.0.17763
|_ System_Time: 2025-11-01T00:36:25+00:00
| ssl-cert: Subject: commonName=castelblack.north.sevenkingdoms.local
| Not valid before: 2025-10-17T19:20:10
|_Not valid after: 2026-04-18T19:20:10
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb2-time:
| date: 2025-11-01T00:36:24
|_ start_date: N/A
|_nbstat: NetBIOS name: CASTELBLACK, NetBIOS user: <unknown>, NetBIOS MAC: 00:0c:29:65:b7:c5 (VMware)
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled but not required
meereen.essos.local¶
Nmap scan report for 10.10.10.12
Host is up (0.0014s latency).
Not shown: 988 closed tcp ports (conn-refused)
PORT STATE SERVICE VERSION
53/tcp open domain Simple DNS Plus
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-11-01 01:19:50Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2025-10-18T19:21:41
|_Not valid after: 2026-10-18T19:21:41
445/tcp open microsoft-ds Windows Server 2016 Standard Evaluation 14393 microsoft-ds (workgroup: ESSOS)
464/tcp open kpasswd5?
593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
636/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2025-10-18T19:21:41
|_Not valid after: 2026-10-18T19:21:41
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2025-10-18T19:21:41
|_Not valid after: 2026-10-18T19:21:41
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
3269/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2025-10-18T19:21:41
|_Not valid after: 2026-10-18T19:21:41
3389/tcp open ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=meereen.essos.local
| Not valid before: 2025-10-17T18:46:33
|_Not valid after: 2026-04-18T18:46:33
| rdp-ntlm-info:
| Target_Name: ESSOS
| NetBIOS_Domain_Name: ESSOS
| NetBIOS_Computer_Name: MEEREEN
| DNS_Domain_Name: essos.local
| DNS_Computer_Name: meereen.essos.local
| DNS_Tree_Name: essos.local
| Product_Version: 10.0.14393
|_ System_Time: 2025-11-01T01:20:30+00:00
|_ssl-date: 2025-11-01T01:20:39+00:00; -1s from scanner time.
Service Info: Host: MEEREEN; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb-os-discovery:
| OS: Windows Server 2016 Standard Evaluation 14393 (Windows Server 2016 Standard Evaluation 6.3)
| Computer name: meereen
| NetBIOS computer name: MEEREEN\x00
| Domain name: essos.local
| Forest name: essos.local
| FQDN: meereen.essos.local
|_ System time: 2025-10-31T18:20:30-07:00
| smb-security-mode:
| account_used: guest
| authentication_level: user
| challenge_response: supported
|_ message_signing: required
|_nbstat: NetBIOS name: MEEREEN, NetBIOS user: <unknown>, NetBIOS MAC: 00:0c:29:b4:1b:88 (VMware)
|_clock-skew: mean: 46m39s, deviation: 2h20m00s, median: -1s
| smb2-time:
| date: 2025-11-01T01:20:30
|_ start_date: 2025-10-31T23:50:21
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled and required
braavos.essos.local¶
Nmap scan report for 10.10.10.23
Host is up (0.00069s latency).
Not shown: 994 filtered tcp ports (no-response)
PORT STATE SERVICE VERSION
80/tcp open http Microsoft IIS httpd 10.0
| http-methods:
|_ Potentially risky methods: TRACE
|_http-title: IIS Windows Server
|_http-server-header: Microsoft-IIS/10.0
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds Windows Server 2016 Standard Evaluation 14393 microsoft-ds
1433/tcp open ms-sql-s Microsoft SQL Server 2019 15.00.2000.00; RTM
|_ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_ms-sql-ntlm-info: ERROR: Script execution failed (use -d to debug)
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2025-11-01T00:01:29
|_Not valid after: 2055-11-01T00:01:29
3389/tcp open ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
| Target_Name: ESSOS
| NetBIOS_Domain_Name: ESSOS
| NetBIOS_Computer_Name: BRAAVOS
| DNS_Domain_Name: essos.local
| DNS_Computer_Name: braavos.essos.local
| DNS_Tree_Name: essos.local
| Product_Version: 10.0.14393
|_ System_Time: 2025-11-01T00:36:25+00:00
| ssl-cert: Subject: commonName=braavos.essos.local
| Not valid before: 2025-10-17T19:20:05
|_Not valid after: 2026-04-18T19:20:05
|_ssl-date: 2025-11-01T00:36:39+00:00; 0s from scanner time.
Service Info: OSs: Windows, Windows Server 2008 R2 - 2012; CPE: cpe:/o:microsoft:windows
Host script results:
| smb-security-mode:
| account_used: guest
| authentication_level: user
| challenge_response: supported
|_ message_signing: disabled (dangerous, but default)
|_clock-skew: mean: 1h09m59s, deviation: 2h51m28s, median: 0s
|_nbstat: NetBIOS name: BRAAVOS, NetBIOS user: <unknown>, NetBIOS MAC: 00:0c:29:66:b9:e5 (VMware)
| smb2-time:
| date: 2025-11-01T00:36:24
|_ start_date: 2025-11-01T00:00:32
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled but not required
| smb-os-discovery:
| OS: Windows Server 2016 Standard Evaluation 14393 (Windows Server 2016 Standard Evaluation 6.3)
| Computer name: braavos
| NetBIOS computer name: BRAAVOS\x00
| Domain name: essos.local
| Forest name: essos.local
| FQDN: braavos.essos.local
|_ System time: 2025-10-31T17:36:25-07:00
